Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Name: | Electric Galvanized Concertina Razor Wire | Key Words: | Razor Wire |
|---|---|---|---|
| Place Of Origin: | China | Razor Thickness: | 0.5mm |
| Type: | Barbed Wire Coil | Port: | Tianjin |
| Materials: | Stainless Steel Wire, 304, 430, 316 Etc. | Metal Type: | Iron |
| Barbed Types: | Two Wire Twist | Blade Type: | Concertina |
| Wire Core: | 2.5mm | Blade Choice: | 10mm / 22mm / 30mm/60mm/65mm |
| Normal Blade Type: | BTO-22, BTO-30, CBT-60, CBT-65 | Tensile: | 1400N/mm2 |
| Color: | Silver And Request | Mode Of Production: | OEM |
| Highlight: | Galvanized Concertina Wire,Galvanized Concertina Razor Wire,Fence Concertina Wire Anti Corrosion |
||

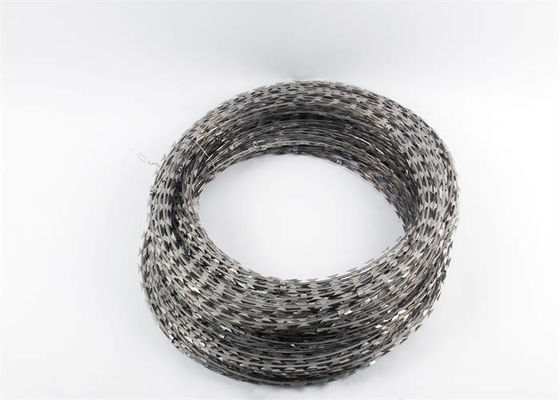

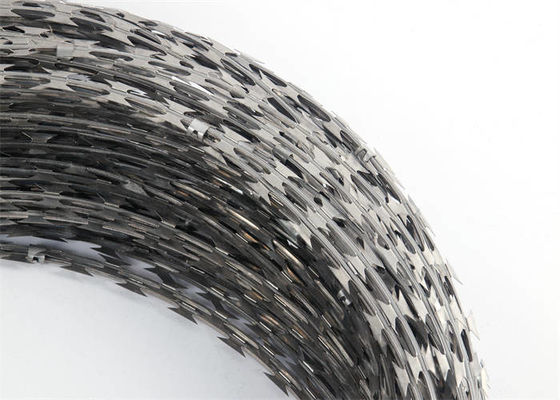

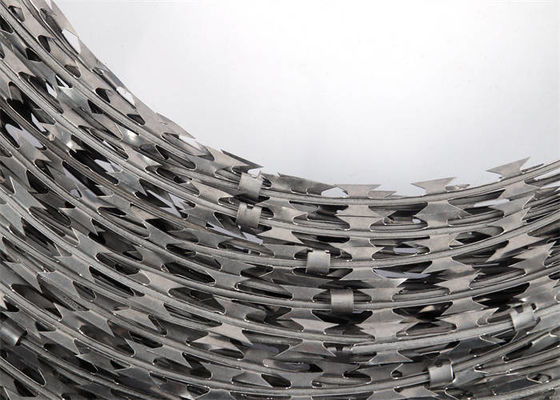

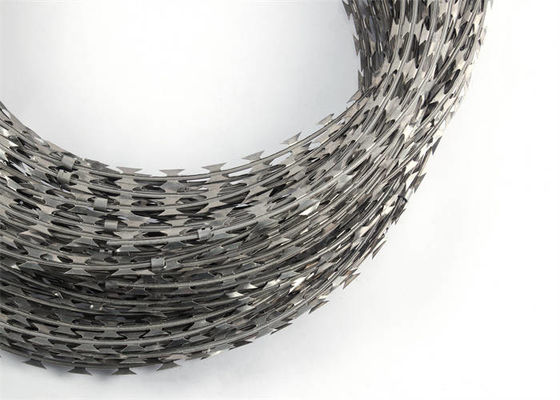

Electric Galvanized Concertina Razor Wire BTO15 Anti Corrosion For Fence
Razor wire, also known as barbed tape, is a highly effective and widely used security fencing material. It is characterized by its sharp, razor-like edges, which act as a strong deterrent against potential intruders and provide enhanced security for various applications.
Razor barbed wire can be in coils and in panels. The material of razor wire can be galvanized wire, stainless steel wire; the surface treatment can be hot dipped galvanized or stainless steel or powder coated, all colors can be customized.
Features of Electric Galvanized Galvanized Concertina Razor Wire BTO15 Razor Wire For Fence
Anti corrosion
Antiaging
Sunscreen
Weather ability
Cost saving
To some extend play a role in protection and intimidation.
Applications of Electric Galvanized Concertina Razor Wire BTO15 Anti Corrosion For Fence
Airport.
Military site.
Prison.
Factory.
High class residences.
Secure hospitals.
Schools.
Parks.
Specification of Electric Galvanized Concertina Razor Wire BTO15 Anti Corrosion For Fence
| Reference number | Blade style | Thickness (mm) |
Wire diameter (mm) |
Blade length (mm) |
Blade width (mm) |
Blade spacing (mm) |
|---|---|---|---|---|---|---|
| BTO-12 |  |
0.5 ± 0.05 | 2.5 ± 0.1 | 12 ± 1 | 15 ± 1 | 26 ± 1 |
| BTO-15 | |
0.5 ± 0.05 | 2.5 ± 0.1 | 15 ± 1 | 15 ± 1 | 33 ± 1 |
| BTO-22 | |
0.5 ± 0.05 | 2.5 ± 0.1 | 22 ± 1 | 15 ± 1 | 34 ± 1 |
| BTO-30 | |
0.5 ± 0.05 | 2.5 ± 0.1 | 30 ± 1 | 18 ± 1 | 45 ± 1 |
| CBT-25 | |
0.5 ± 0.05 | 2.5 ± 0.1 | 25 ± 1 | 16 ± 1 | 40 ± 1 |
| CBT-60 | |
0.6 ± 0.05 | 2.5 ± 0.1 | 60 ± 2 | 32 ± 1 | 100 ± 2 |
| CBT-65 | |
0.6 ± 0.05 | 2.5 ± 0.1 | 65 ± 2 | 21 ± 1 | 100 ± 2 |
| CBT refers to Concertina Barbed Tape. BTO refers to Barbed Tape Obstacle. |
||||||
| Item | Outside diameter (mm) |
Quantity of loops | Standard length per coil (m) |
Type | Notes |
|---|---|---|---|---|---|
| RZ-01 | 450 | 33 | 7-8 | CBT-60, 65 | Single coil |
| RZ-02 | 500 | 56 | 12-13 | CBT-60, 65 | Single coil |
| RZ-03 | 700 | 56 | 13-14 | CBT-60, 65 | Single coil |
| RZ-04 | 930 | 56 | 14-15 | CBT-60, 65 | Single coil |
| RZ-05 | 450 | 56 | 8-9 (3 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-06 | 500 | 56 | 9-10 (3 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-07 | 600 | 56 | 10-11 (3 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-08 | 600 | 56 | 8-10 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-09 | 700 | 56 | 10-12 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-10 | 800 | 56 | 11-13 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-11 | 900 | 56 | 12-14 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-12 | 960 | 56 | 13-15 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
| RZ-13 | 980 | 56 | 14-16 (5 clips) | BTO-10, 12, 18, 22, 28, 30 | Cross type |
