Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stailess Steel Crimp Wire Mesh Crimped Wire Mesh | Key Words: | Crimped Wire Mesh |
|---|---|---|---|
| Technique: | Crimped | Advantage: | Rust Resistance |
| Thickness: | 1.0mm | Surface: | Galvanized (Electro Or Hot Dipped) |
| Edge Type: | Raw Edge, Hooked Edge, Closed Edge | Type: | Crimped Wire Mesh |
| Material: | SS304/SS304L/SS316/SS316L/SS310/Low Carbon Steel Wire | Weave Style: | Plain Weave |
| Hole Shape: | As Per Requirement | Color: | Silver |
| Length: | 30m Per Roll Or As Required | Usage: | Screening Coarse Material |
| Width: | Customized | Feature: | Corrosion Resistance,beautiful,Anti-corrosion |
| Highlight: | 316 Stailess Steel Crimp Wire Mesh,Crimp Wire Mesh Galvanized,Security Window Screen Wire Mesh |
||

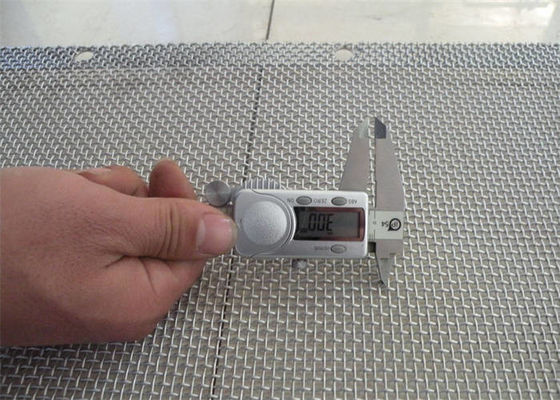

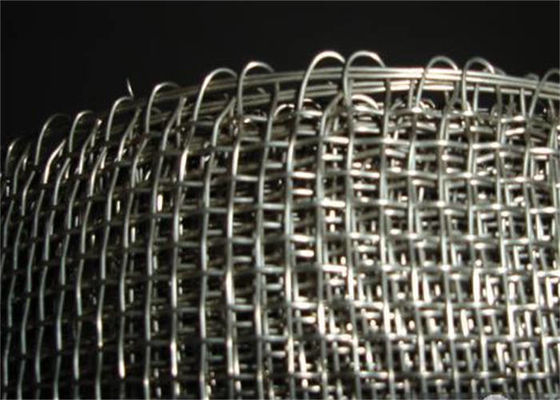

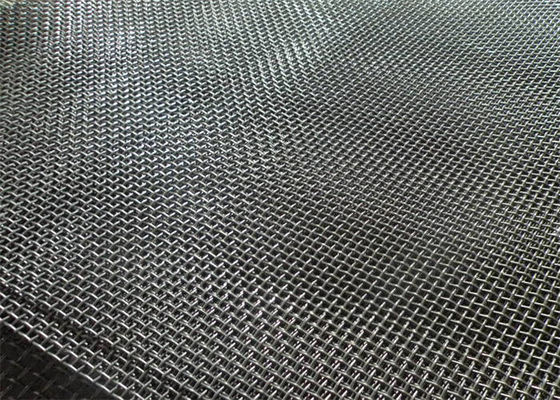

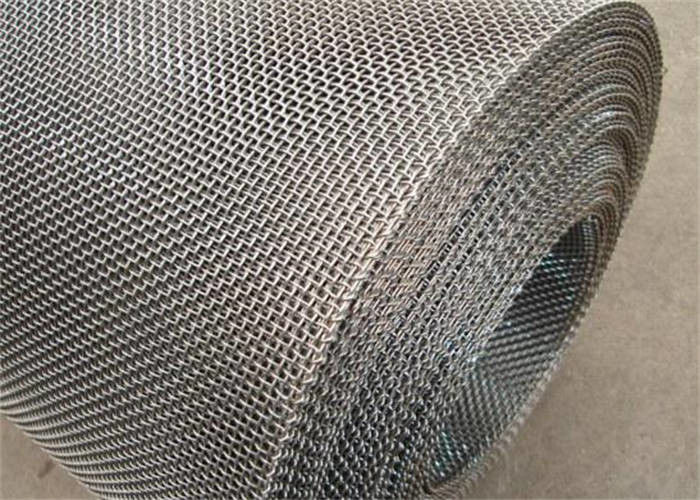

Stainless steel security screen is made of high tensile AISI316 stainless steel wire, tolerance(+/-0.01mm), we can offer normal tensile mesh with 900Mpa (900N), and high tensile mesh with 1100N. The holes are square and the wires are very strong (not sliding), screen surface is flattened after we weave the wires to mesh screen. we use Akzo powder, which is the best powder in the world, with shiny surface, no fading, no pealing and stay fresh for many years.
Our factory is specialized in producing security window and doors screens, we have advanced testing equipment, raw materials can be detected, the tensile strength and elongation.
The mesh with great precision weaving, uniform color and flat surface, not easy to break and cut, can meet Australian Standards and Laboratory Testing.
Product Features of 316 Stailess Steel Crimped Wire Mesh For Security Window Screen
Product Applications of 316 Stailess Steel Crimped Wire Mesh For Security Window Screen
Woven Type
|
Product name |
65mn 45# Steel Crimped Woven Wire Mesh Vibrating Quarry Screen |
| Material | 65Mn, 45# |
| Wire Diameter | 1.5-12mm |
| Mesh Hole | 5mm - 100mm |
| Panel Width | 1m, 1.5m, etc |
| Panel Length | 1.5m, 2m, etc |
| Woven Type | Double crimped, intermediate crimped, flat top crimped, lock crimped |
| Mesh Shape | Square, rectangular slot, long slot. |
| Surface Treatment | Anti rust oil painted |
| Edge | Plain, bent, reinforced shroud, etc |
| Application | Mining and Quarry |
|
Specification List of Crimped Wire Mesh(Partly)
|
||||
| Wire Diameter mm | Mesh | Wire Diameter mm | Mesh | |
| 2.0 — 1.6 | 3 | 1.0–0.6 | 10 | |
| 1.8 — 1.2 | 3.5 | 0.8–0.5 | 12 | |
| 1.6 — 0.7 | 4 | 0.7–0.5 | 14 | |
| 1.6 — 0.6 | 5 | 0.60–0.4 | 16 | |
| 1.5–0.8 | 6 | 0.6–0.4 | 18 | |
| 1.2–0.7 | 8 | 0.5–0.35 | 20 | |
| 1.5 | 10 | 1.9 | 20 | |
| 1.6 | 10 | 2.0 | 20 | |
| 1.5 | 12 | 1.9 | 25 | |
| 1.6 | 12 | 2.0 | 25 | |
| 1.5 | 15 | 2.5 | 20 | |
| 1.6 | 15 | 2.6 | 20 | |
| 1.9 | 10 | 2.5 | 25 | |
| 2.0 | 10 | 2.6 | 25 | |
| 1.9 | 12 | 2.5 | 30 | |
| 2.0 | 12 | 2.6 | 30 | |
| 1.9 | 15 | 3.0 | 25 | |
| 2.0 | 15 | 3.2 | 25 | |
| 1.9 | 18 | 3.0 | 30 | |
| 2.0 | 18 | 3.2 | 30 | |
| 4.0 | 19×9 | 1.2 | 5.5×1.5 | |
| 3.5 | 18×8 | 1.0 | 4.5×1.2 | |
| 3.2 | 16×7 | 0.8 | 4.0×1.0 | |
| 2.9 | 15×6 | 0.7 | 3.5×0.9 | |
| 2.6 | 13.5×5 | 0.7 | 3.3×0.8 | |
| 2.3 | 11.5×4 | 0.6 | 3.0×0.7 | |
| 2.0 | 10×3.5 | 0.5 | 2.7×0.6 | |
| 1.8 | 9×3 | 0.5 | 2.3×0.5 | |
| 1.6 | 8×2.5 | 0.4 | 1.9×0.4 | |
| 1.4 | 7×2 | 0.3 | 1.5×0.3 | |
