Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Features: | Structure Firm And Durable | Name: | Stone Crusher Screen Mesh |
|---|---|---|---|
| Keyword: | Crimped Wire Mesh | Technique: | Crimped |
| Advantage: | Rust Resistance | Thickness: | 1.0mm |
| Surface: | Galvanized (Electro Or Hot Dipped) | Edge Type: | Raw Edge, Hooked Edge, Closed Edge |
| Application: | Protecting Mesh | Type: | Crimped Screen |
| Material: | SS304/SS304L/SS316/SS316L/SS310/Low Carbon Steel Wire | Weave Style: | Plain Weave |
| Wire Diameter: | 0.5-10mm | Hole Shape: | As Per Requirement |
| Color: | Silver | Length: | 30m Per Roll Or As Required |
| Usage: | Speaker Grills | Surface Treatment: | Untreatment |
| Width: | Customized | Feature: | Corrosion Resistance |
| Certification: | ISO | ||
| Highlight: | High Strength Painted Wire Mesh,Painted Wire Mesh Crimped,Stone Crusher Screen Mesh |
||
In addition, this type of woven mesh is a very flexible and malleable material. lts shape can meet precise requirements and can be trimmed to fit any structure.lt is durable and performs well under high temperature and pressure.In food processing,pharmaceuticals, and recycling, it is also integrated into many household appliances, automotive filters, and used in the manufacturing process of floor coverings, particleboard, hard fiberboard and other building materials.In an industrial environment, it has countless applications. As a precision woven product, it has the ability to maintain the precision of the pore size, and is used as a filter and screening medium for various particle/fluid/gas separation cleaning and sizing applications, providing a wide range of applications.
Product Features of Painted Crimped Wire Mesh Stone Screen Mesh
Product Applications of Painted Crimped Wire Mesh Stone Screen Mesh
Woven Type
|
Product name |
65mn 45# Steel Crimped Woven Wire Mesh Vibrating Quarry Screen |
| Material | 65Mn, 45# |
| Wire Diameter | 1.5-12mm |
| Mesh Hole | 5mm - 100mm |
| Panel Width | 1m, 1.5m, etc |
| Panel Length | 1.5m, 2m, etc |
| Woven Type | Double crimped, intermediate crimped, flat top crimped, lock crimped |
| Mesh Shape | Square, rectangular slot, long slot. |
| Surface Treatment | Anti rust oil painted |

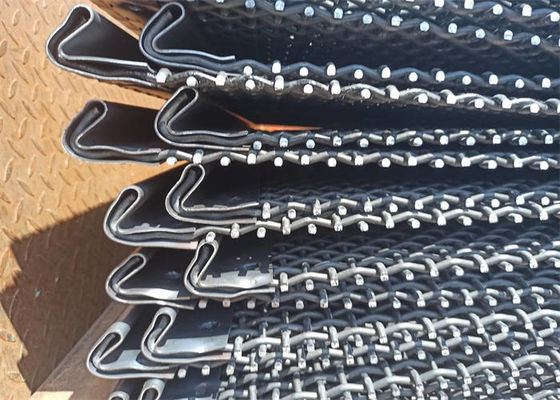

| Edge | Plain, bent, reinforced shroud, etc |
| Application | Mining and Quarry |
|
Specification List of Crimped Wire Mesh(Partly)
|
||||
| Wire Diameter mm | Mesh | Wire Diameter mm | Mesh | |
| 2.0 — 1.6 | 3 | 1.0–0.6 | 10 | |
| 1.8 — 1.2 | 3.5 | 0.8–0.5 | 12 | |
| 1.6 — 0.7 | 4 | 0.7–0.5 | 14 | |
| 1.6 — 0.6 | 5 | 0.60–0.4 | 16 | |
| 1.5–0.8 | 6 | 0.6–0.4 | 18 | |
| 1.2–0.7 | 8 | 0.5–0.35 | 20 | |
| 1.5 | 10 | 1.9 | 20 | |
| 1.6 | 10 | 2.0 | 20 | |
| 1.5 | 12 | 1.9 | 25 | |
| 1.6 | 12 | 2.0 | 25 | |
| 1.5 | 15 | 2.5 | 20 | |
| 1.6 | 15 | 2.6 | 20 | |
| 1.9 | 10 | 2.5 | 25 | |
| 2.0 | 10 | 2.6 | 25 | |
| 1.9 | 12 | 2.5 | 30 | |
| 2.0 | 12 | 2.6 | 30 | |
| 1.9 | 15 | 3.0 | 25 | |
| 2.0 | 15 | 3.2 | 25 | |
| 1.9 | 18 | 3.0 | 30 | |
| 2.0 | 18 | 3.2 | 30 | |
| 4.0 | 19×9 | 1.2 | 5.5×1.5 | |
| 3.5 | 18×8 | 1.0 | 4.5×1.2 | |
| 3.2 | 16×7 | 0.8 | 4.0×1.0 | |
| 2.9 | 15×6 | 0.7 | 3.5×0.9 | |
| 2.6 | 13.5×5 | 0.7 | 3.3×0.8 | |
| 2.3 | 11.5×4 | 0.6 | 3.0×0.7 | |
| 2.0 | 10×3.5 | 0.5 | 2.7×0.6 | |
| 1.8 | 9×3 | 0.5 | 2.3×0.5 | |
| 1.6 | 8×2.5 | 0.4 | 1.9×0.4 | |
| 1.4 | 7×2 | 0.3 | 1.5×0.3 | |
