Anping Win Win Wire Mesh Manufacturing Co., Ltd
|
Product Details:
Payment & Shipping Terms:
|
| Name: | Crimped Woven Wire Mesh | Key Words: | Crimped Wire Mesh |
|---|---|---|---|
| Technique: | Crimped | Advantage: | Rust Resistant |
| Thickness: | 1.0mm | Surface: | Galvanized (Electro Or Hot Dipped) |
| Edge Type: | Raw Edge, Hooked Edge, Closed Edge | Application: | Decorative Wire Mesh |
| Type: | Crimped Wire Mesh | Material: | SS304/SS304L/SS316/SS316L/SS310/Low Carbon Steel Wire |
| Wire Diameter: | 0.5-10mm | Hole Shape: | As Per Requirement |
| Color: | Silver | Length: | 30m Per Roll Or As Required |
| Highlight: | Woven Crimped Wire Mesh,Crimped Woven Wire Mesh,Hooked Mine Sieving Mesh |
||

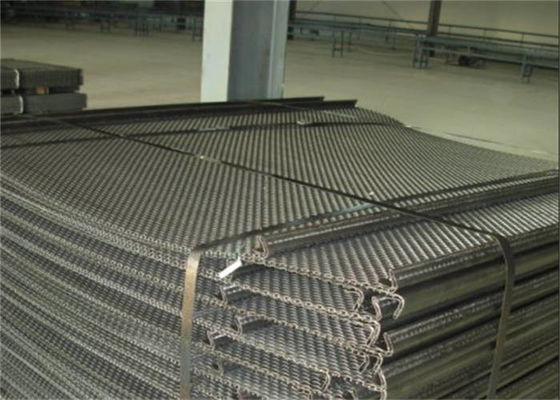

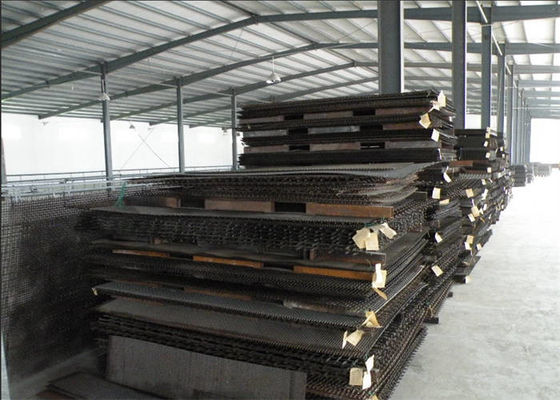

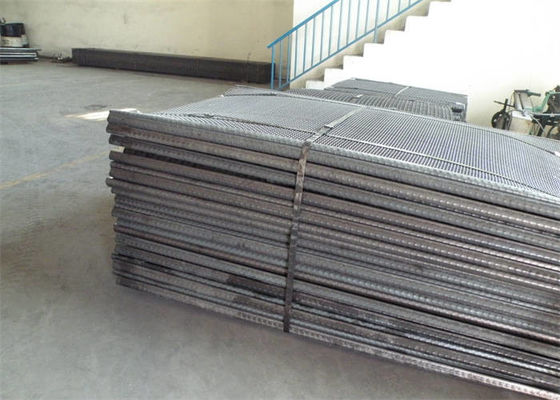

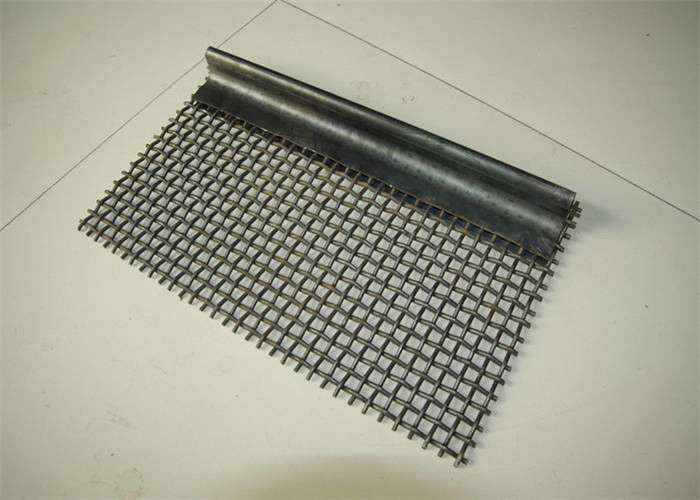

Crimped wire mesh is a wire mesh product that the wire has been embossed by a ginning machine and then was woven into a metal mesh of different specifications through a new type of woven mesh machine.
Crimped woven wire mesh is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings.
Crimped wire mesh is used as fence or filters in a lot of industries;Heavy Duty Crimped wire mesh are also named Quarry Mesh,it is mostly used as screen in mining,coal factory,construction and other industries.
Product Name: crimped wire mesh, Square wire mesh, quarry screen mesh, mining screen wire mesh
Product Features of Woven Screen Crimped Wire Mesh Hooked Mine Sieving Mesh
Product Applications of Woven Screen Crimped Wire Mesh Hooked Mine Sieving Mesh
Woven Type
|
Product name |
65mn 45# Steel Crimped Woven Wire Mesh Vibrating Quarry Screen |
| Material | 65Mn, 45# |
| Wire Diameter | 1.5-12mm |
| Mesh Hole | 5mm - 100mm |
| Panel Width | 1m, 1.5m, etc |
| Panel Length | 1.5m, 2m, etc |
| Woven Type | Double crimped, intermediate crimped, flat top crimped, lock crimped |
| Mesh Shape | Square, rectangular slot, long slot. |
| Surface Treatment | Anti rust oil painted |
| Edge | Plain, bent, reinforced shroud, etc |
| Application | Mining and Quarry |
|
Specification List of Crimped Wire Mesh(Partly)
|
||||
| Wire Diameter mm | Mesh | Wire Diameter mm | Mesh | |
| 2.0 — 1.6 | 3 | 1.0–0.6 | 10 | |
| 1.8 — 1.2 | 3.5 | 0.8–0.5 | 12 | |
| 1.6 — 0.7 | 4 | 0.7–0.5 | 14 | |
| 1.6 — 0.6 | 5 | 0.60–0.4 | 16 | |
| 1.5–0.8 | 6 | 0.6–0.4 | 18 | |
| 1.2–0.7 | 8 | 0.5–0.35 | 20 | |
| 1.5 | 10 | 1.9 | 20 | |
| 1.6 | 10 | 2.0 | 20 | |
| 1.5 | 12 | 1.9 | 25 | |
| 1.6 | 12 | 2.0 | 25 | |
| 1.5 | 15 | 2.5 | 20 | |
| 1.6 | 15 | 2.6 | 20 | |
| 1.9 | 10 | 2.5 | 25 | |
| 2.0 | 10 | 2.6 | 25 | |
| 1.9 | 12 | 2.5 | 30 | |
| 2.0 | 12 | 2.6 | 30 | |
| 1.9 | 15 | 3.0 | 25 | |
| 2.0 | 15 | 3.2 | 25 | |
| 1.9 | 18 | 3.0 | 30 | |
| 2.0 | 18 | 3.2 | 30 | |
| 4.0 | 19×9 | 1.2 | 5.5×1.5 | |
| 3.5 | 18×8 | 1.0 | 4.5×1.2 | |
| 3.2 | 16×7 | 0.8 | 4.0×1.0 | |
| 2.9 | 15×6 | 0.7 | 3.5×0.9 | |
| 2.6 | 13.5×5 | 0.7 | 3.3×0.8 | |
| 2.3 | 11.5×4 | 0.6 | 3.0×0.7 | |
| 2.0 | 10×3.5 | 0.5 | 2.7×0.6 | |
| 1.8 | 9×3 | 0.5 | 2.3×0.5 | |
| 1.6 | 8×2.5 | 0.4 | 1.9×0.4 | |
| 1.4 | 7×2 | 0.3 | 1.5×0.3 | |
